Insulation design system and glazings with Low-e glass, meeting different energy rating standards.
|
Category |
Details |
|
Glass Configuration |
5mm + 9A + 5mm |
|
Hardware Accessories |

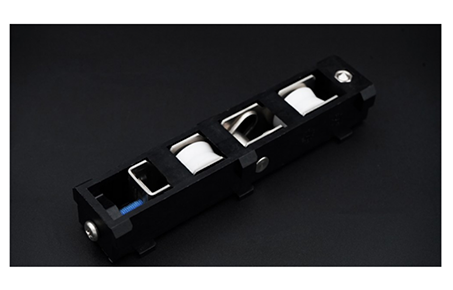

Standard: Paiya exclusive one-word lock, Paiya exclusive fixed bottom pulley |
|
Optional Tracks |
Two-track 76mm, three-track with screen 118mm |
|
Drainage System |
Stepped drainage with raised edge waterproofing |
|
Profile Wall Thickness |
1.4–1.5mm |
|
Frame-to-Wall Width |
Two-track 76mm, three-track with screen 119mm |
Product Features
1. Thermal break system
Featuring thermal-break system technology for energy saving, sound insulation, noise reduction, dust and water resistance.
2. Heat proof
Insulation design system and glazings with Low-e glass, meeting different energy rating standards.
3.Sound proof
Insulation glass system reducing noise from 36db to 43db
4. stable structure
Premium primary aluminum 6063-T5, professional architectural system design, strong and safe structure
5. Aesthetics
Hidden drainage system without external wind caps, delivering a clean exterior look while ensuring vertical drainage that prevents rainwater backflow under high wind conditions.
6.Intelligent
With smart window control system, intelligentize your home
Product Brief
1.Appearance Design:
Harmonious lines and layered structure with a clever cascading design create a unique visual effect. The aesthetic and versatile color choices reflect a modern, sophisticated, and personalized home style.
2.Design Feature:

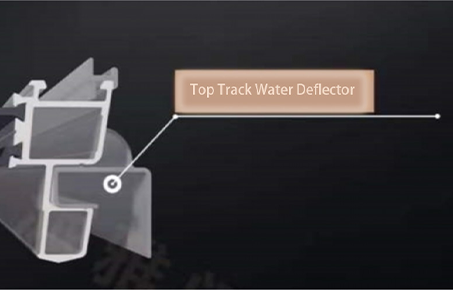

The secure anti-detachment cover and design prevent sash detachment in strong winds, strengthening the window’s stability. The unique outdoor top rain guard blocks wind pressure and rain, offering both water and wind protection.
3.Sealing Design:
The angled extrusion structure of the sash gasket provides a larger contact area and better sealing. Four silicone brushes improve the seal, eliminating drafts and leaks. Windproof drainage covers ensure no light, wind, or noise escapes when closed, enhancing wind and dust resistance.
4.Drainage Design:
The deepened water reservoir in the bottom track increases water storage capacity for smoother drainage. The aluminum alloy windproof drainage cover directs rainwater away, preventing backflow and ensuring efficient drainage.
Product details

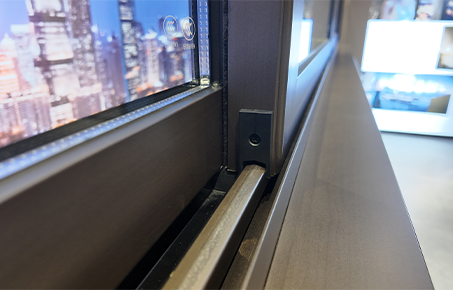

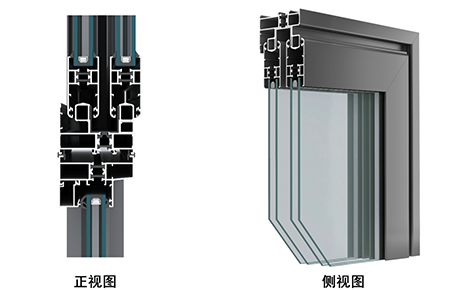

1、The window frame and sash feature an integrated thermal break structure. The use of PA66 thermal break strips significantly enhances the window's sound insulation and thermal performance, making it far superior to comparable products.

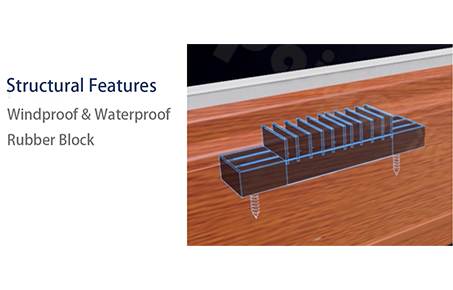

2、Windproof and waterproof rubber seals are installed on both upper and lower tracks to ensure that after the window sash closes, there is no light leakage, no drafts, and no unusual noises, providing enhanced sealing against wind and dust.

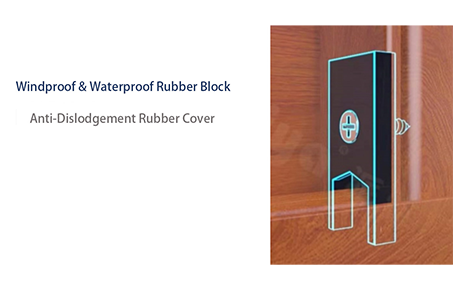

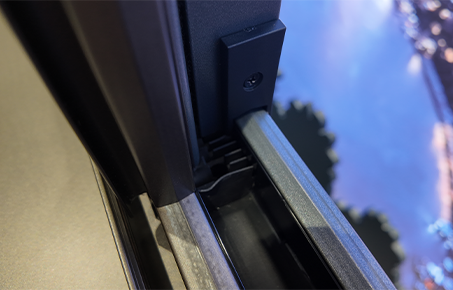

3、Secure and stable anti-ejection rubber cover with an ingeniously designed anti-ejection mechanism effectively prevents window sashes from detaching during strong winds, enhancing the overall stability of the window.
05| Color treatment
The surface adopts AkzoNobel powder coating, ensuring true, saturated, and long-lasting color stability.
Through ceramic electrodeposition technology, the surface receives an anti-glare treatment that produces a soft, elegant gloss without light pollution, and a fine, skin-touch texture.
Powder of Tiger brand presents comfortable pastel clean feelings.

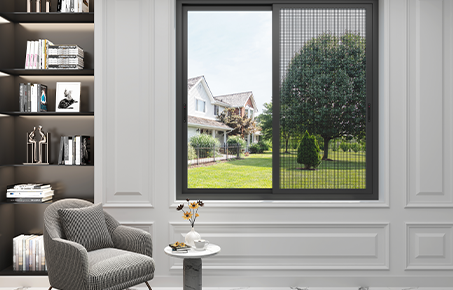

05 l Mesh
0.13 mm Ultra-Fine Mesh – Designed for high transparency and superior visibility while keeping out even the smallest insects such as mosquitoes and midges. Ideal for homes requiring excellent ventilation and unobstructed views.
0.15 mm Fine Mesh – A perfect balance between clarity and durability. Provides effective insect protection without compromising natural airflow, making it suitable for most residential applications.
0.40 mm Reinforced Mesh – Features a thicker wire diameter for greater strength and tear resistance. Recommended for high-traffic areas, sliding doors, or households with pets.
0.80 mm Heavy-Duty Mesh – Engineered for maximum durability, impact resistance, and security. Ideal for villas, ground-floor windows, or coastal and windy regions where enhanced protection is essential.

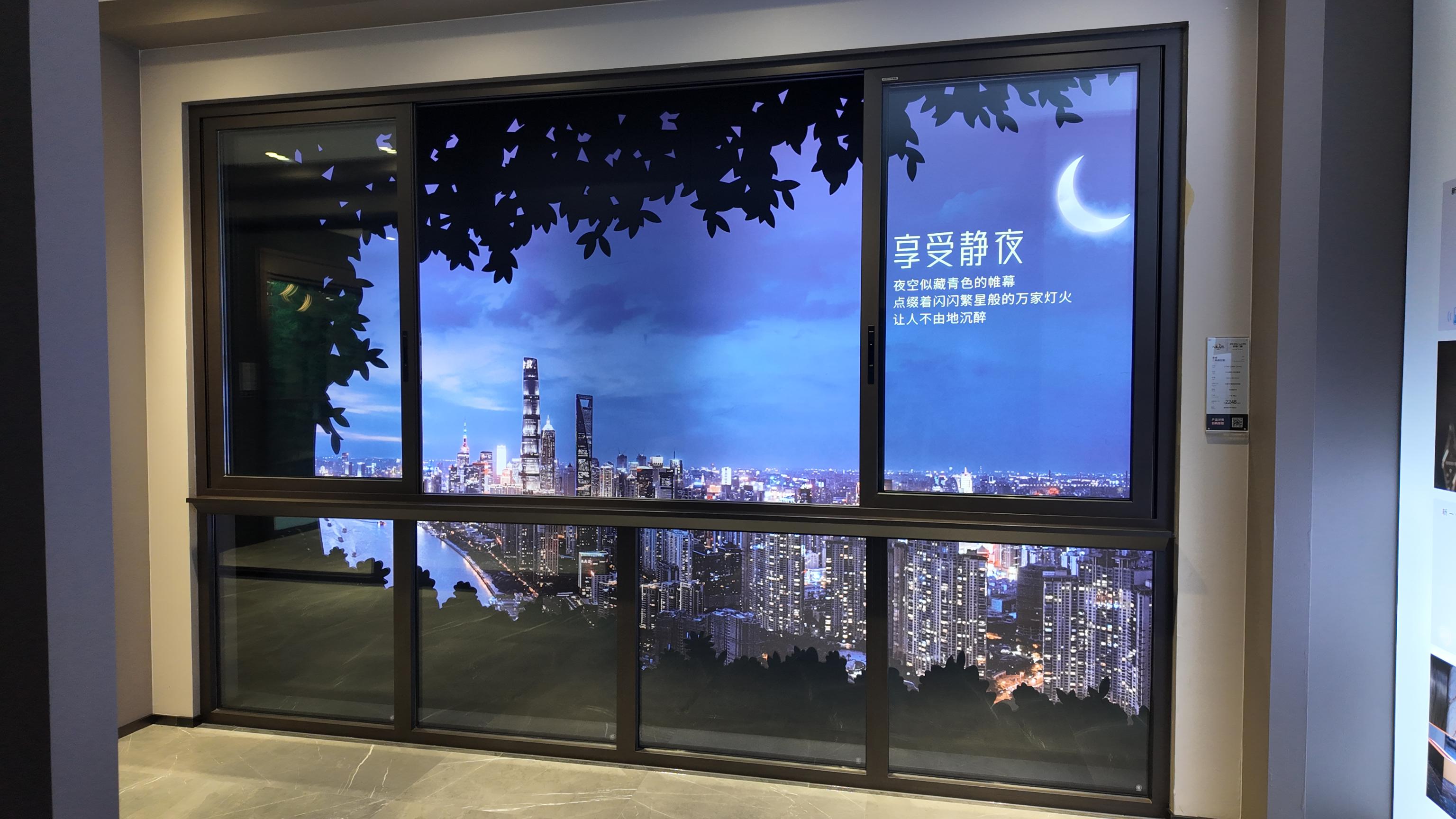

Application Scenarios
Package & Shipping
Yes, our products are designed and manufactured to meet international performance standards, including U-value, wind resistance, air tightness, and water tightness, in line with CE (EN standards) and ISO 9001 requirements.If your market requires specific certificates (such as UKCA, AS2047, or NAFS), we can also prepare the documents or testing accordingly.
We provide full project support from design to after-sales service, including:
10 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.If any problem occurs, please contact us with photos or a short video. Our after-sales team will offer technical guidance, spare parts replacement, or local repair support depending on the situation.
25-35 days after deposit and drawing confirmed
The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you.
(1) Shop drawing / window schedule to show the window dimensions, quantity and type;
(2) Frame Color ；Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others,with Argon or without).
Yes,Our factory covers an area of 300000㎡and has a history of more than thirty years.
