Insulation design system and glazings with Low-e glass, meeting different energy rating standards.
|
Category |
Details |
|
Glass Configuration |
Operable sash: 5mm + 18A + 5mm Fixed glass: 5mm + 20A + 5mm |
|
Hardware Accessories |
Custom brand window locks and roller hardware |
|
Frame flush with the wall |
118mm |
|
Profile Wall Thickness |
1.6–3.0mm |
Product Features
1. Thermal break system
Featuring thermal-break system technology for energy saving, sound insulation, noise reduction, dust and water resistance.
2. Heat proof
Insulation design system and glazings with Low-e glass, meeting different energy rating standards.
3.Sound proof
Insulation glass system reducing noise from 36db to 43db
4. stable structure
Premium primary aluminum 6063-T5, professional architectural system design, strong and safe structure
5. Aesthetics
Hidden drainage system without external wind caps, delivering a clean exterior look while ensuring vertical drainage that prevents rainwater backflow under high wind conditions.
6.Intelligent
With smart window control system, intelligentize your home
Product Brief
1.Appearance Design:
Hidden sash design maximizes visual space, with the sash concealed within the frame for an unobstructed view, enhancing light and providing a wide-open perspective.
2.Sealing Design:
The embedded frame design enhances sealing, providing better security and aesthetics. The bottom horizontal gasket is integrated into the drainage track to prevent wind noise while ensuring smooth operation and water resistance.
3.Drainage Design:
High-gradient waterproof edge with a deepened water reservoir improves water storage and drainage efficiency. The aluminum alloy windproof drainage cover prevents backflow and enhances drainage performance.
Product details

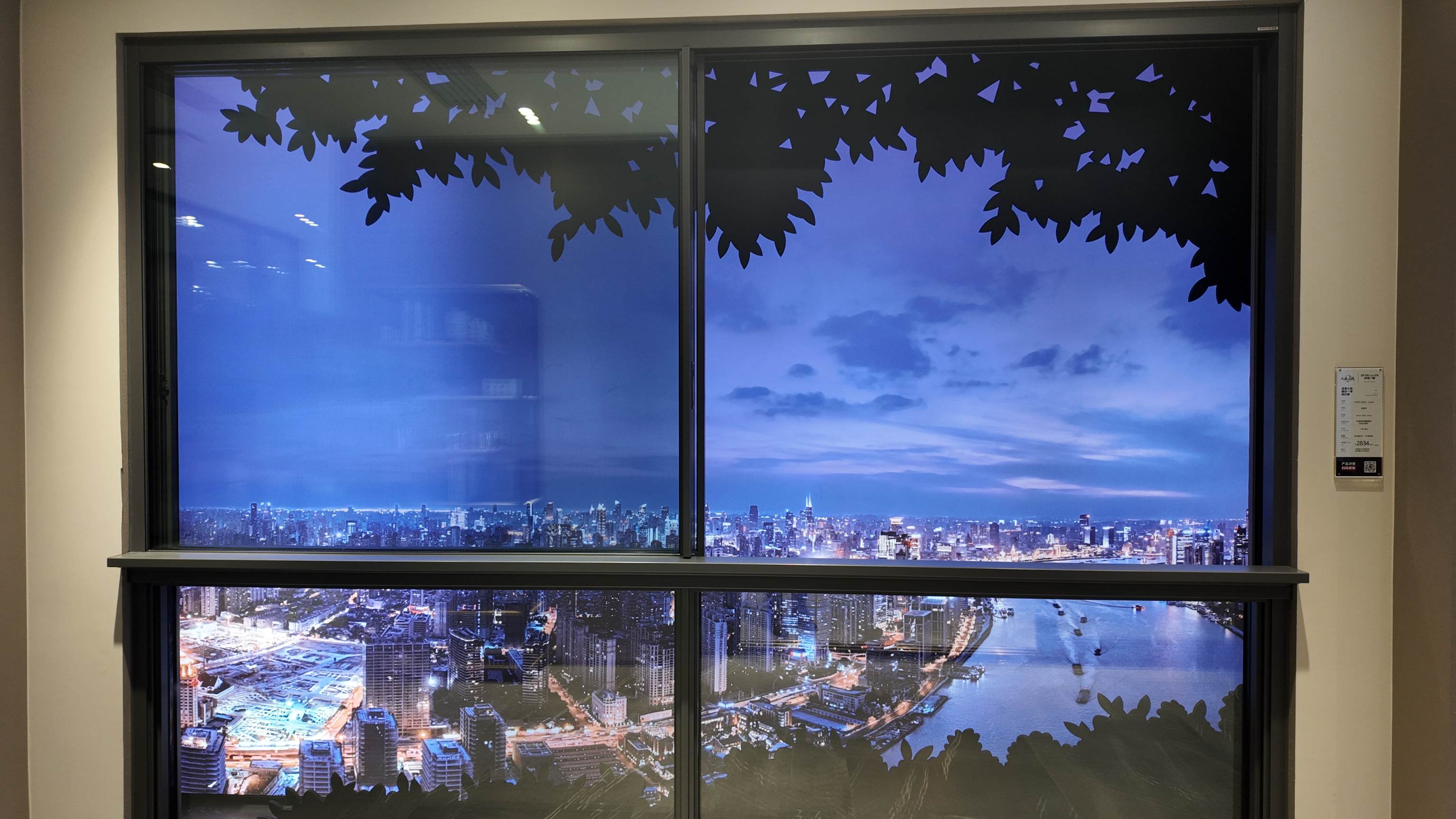

1、The operable sash features a hidden design to maximize the viewing area.The sash is recessed into the frame, creating a frameless appearance that allows for the largest possible light and sightlines, giving you a truly expansive view.

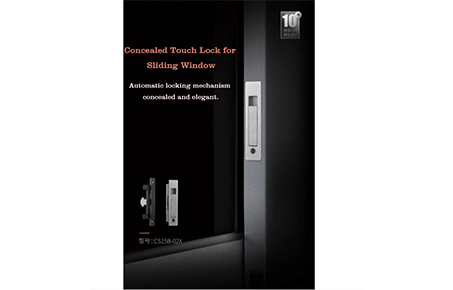

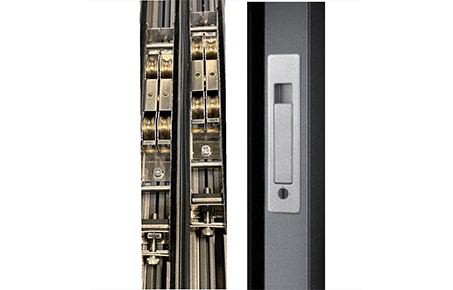

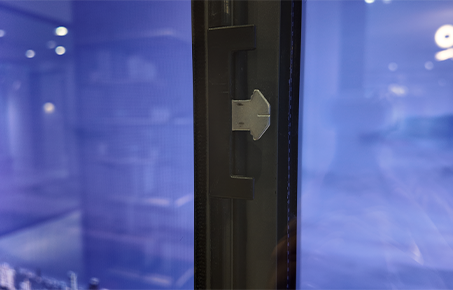

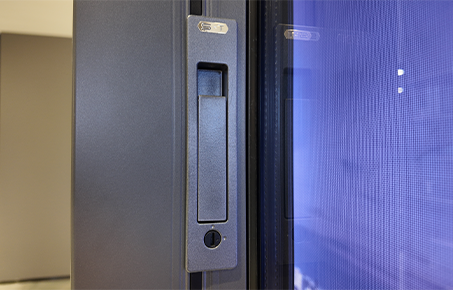

2、Ultra-slim side-mounted automatic lock, offering easier operation and long-lasting durability.

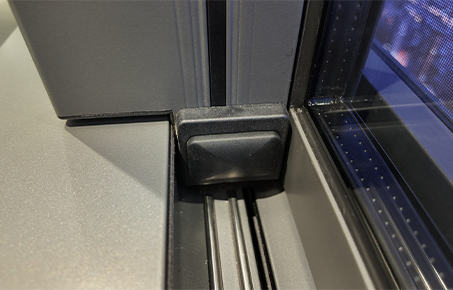

3、Bottom Roller Advantages:

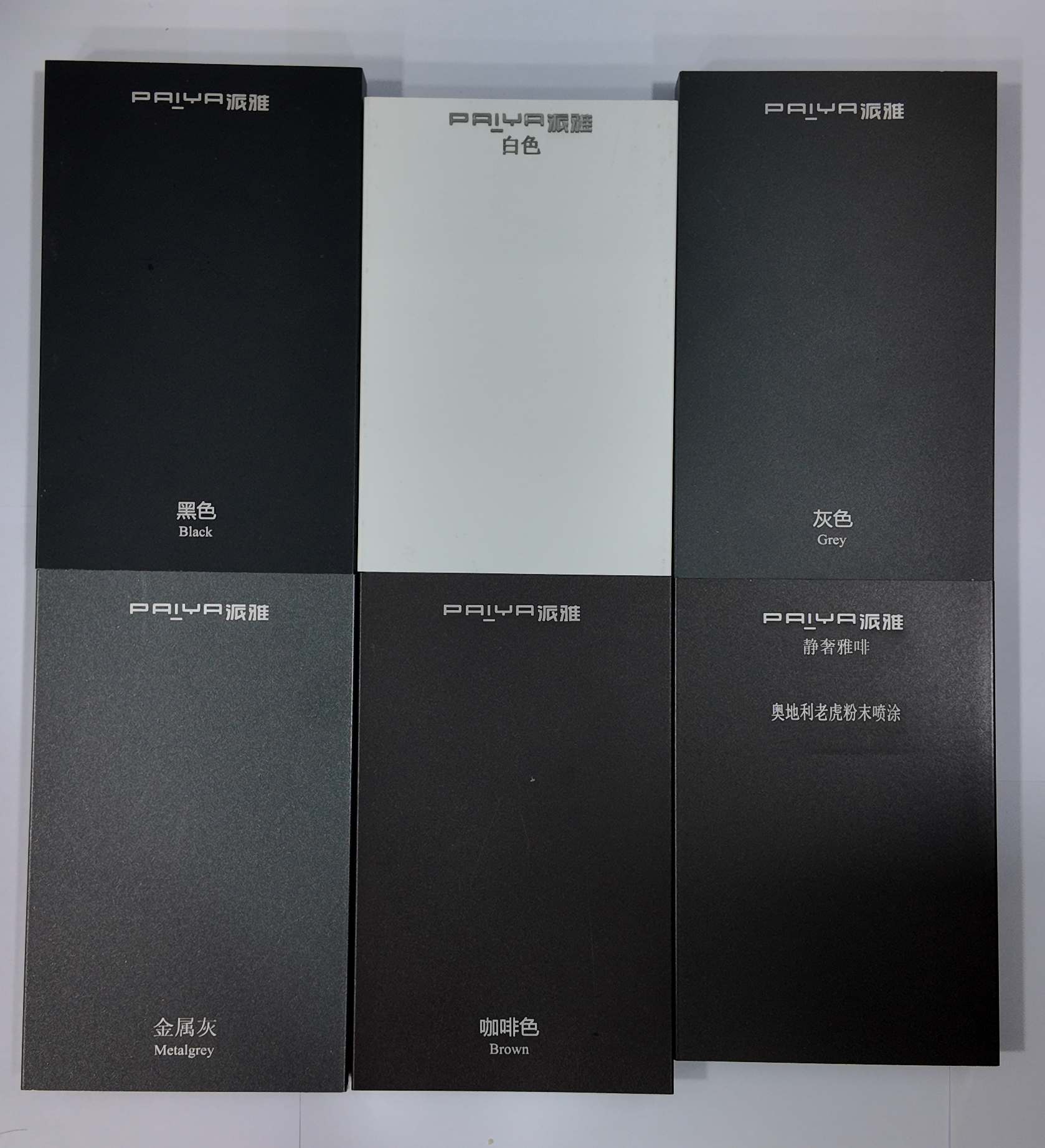

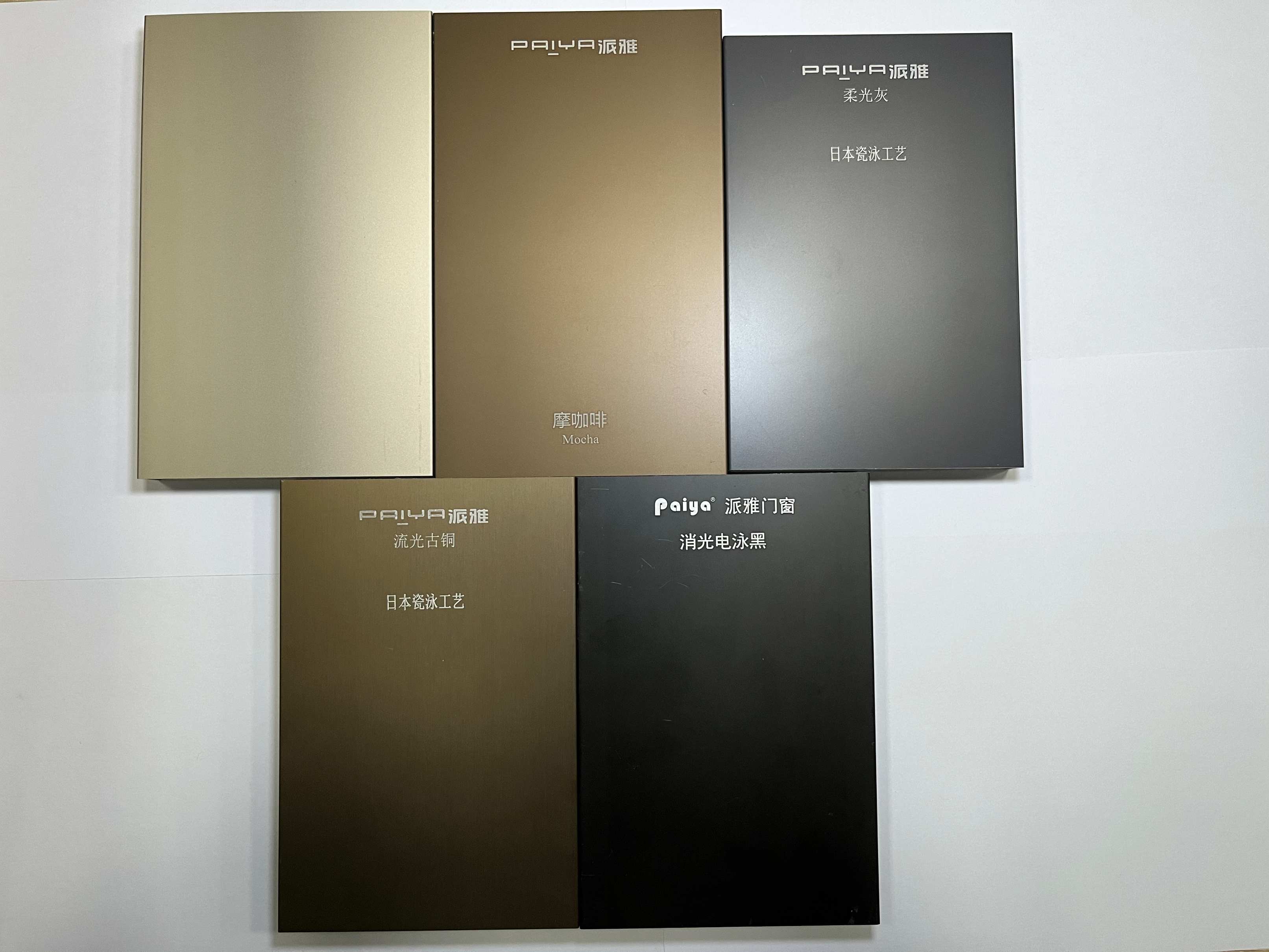

05| Color treatment
The surface adopts AkzoNobel powder coating, ensuring true, saturated, and long-lasting color stability.
Through ceramic electrodeposition technology, the surface receives an anti-glare treatment that produces a soft, elegant gloss without light pollution, and a fine, skin-touch texture.

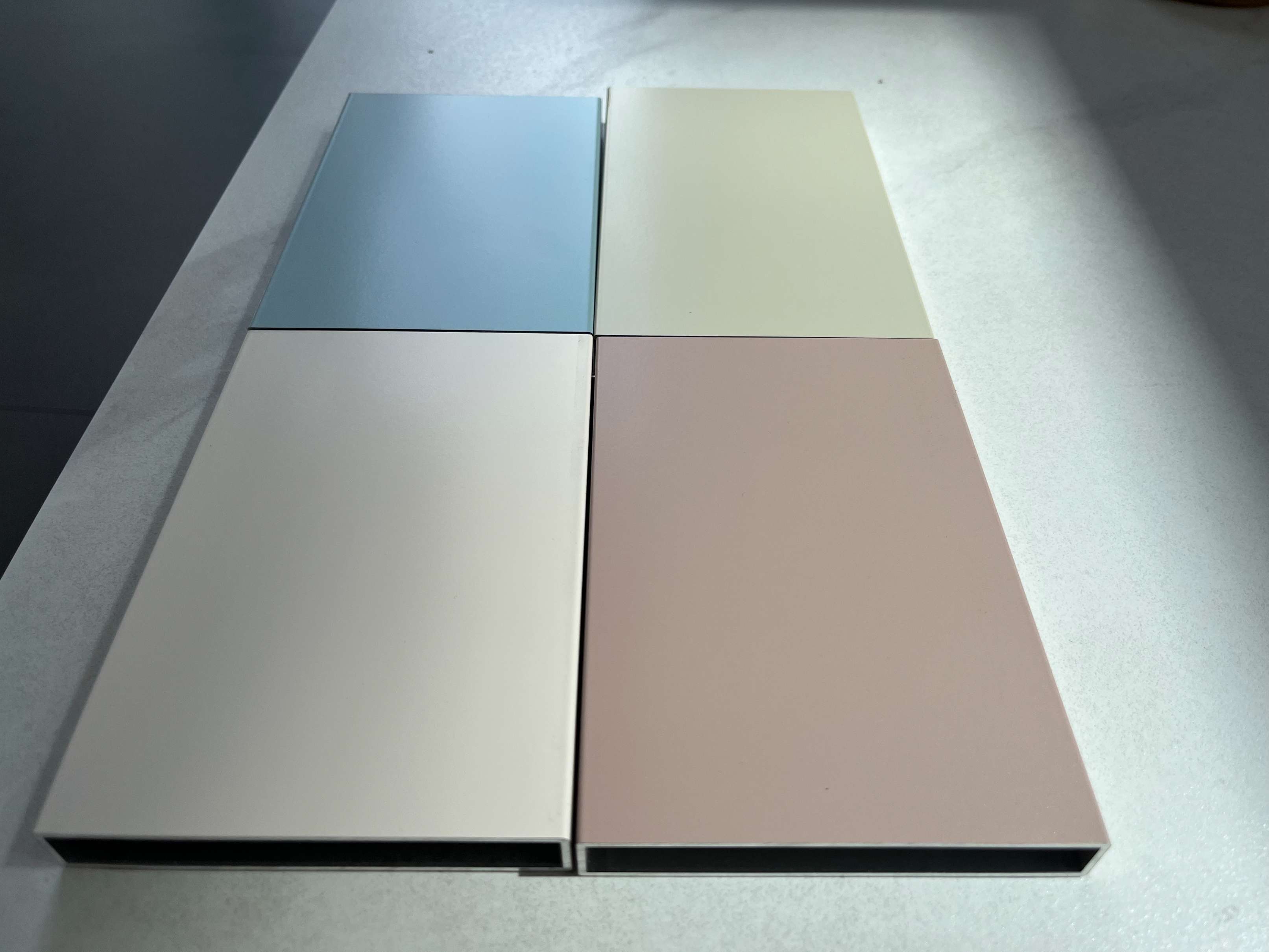

Powder of Tiger brand presents comfortable pastel clean feelings.

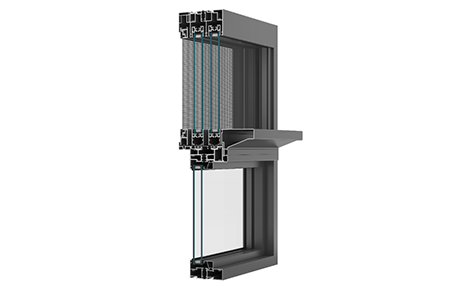

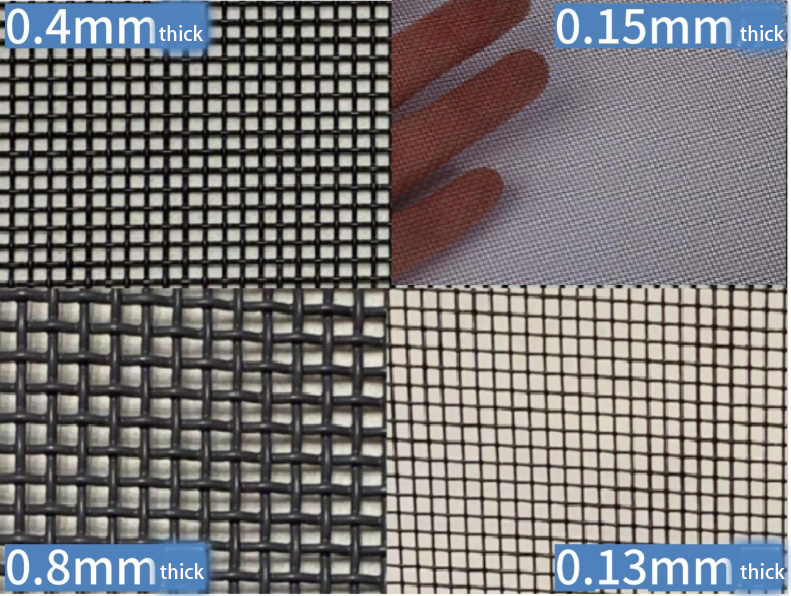

05 l Mesh
0.13 mm Ultra-Fine Mesh – Designed for high transparency and superior visibility while keeping out even the smallest insects such as mosquitoes and midges. Ideal for homes requiring excellent ventilation and unobstructed views.
0.15 mm Fine Mesh – A perfect balance between clarity and durability. Provides effective insect protection without compromising natural airflow, making it suitable for most residential applications.
0.40 mm Reinforced Mesh – Features a thicker wire diameter for greater strength and tear resistance. Recommended for high-traffic areas, sliding doors, or households with pets.
0.80 mm Heavy-Duty Mesh – Engineered for maximum durability, impact resistance, and security. Ideal for villas, ground-floor windows, or coastal and windy regions where enhanced protection is essential.

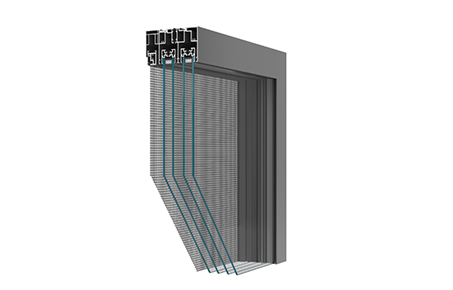

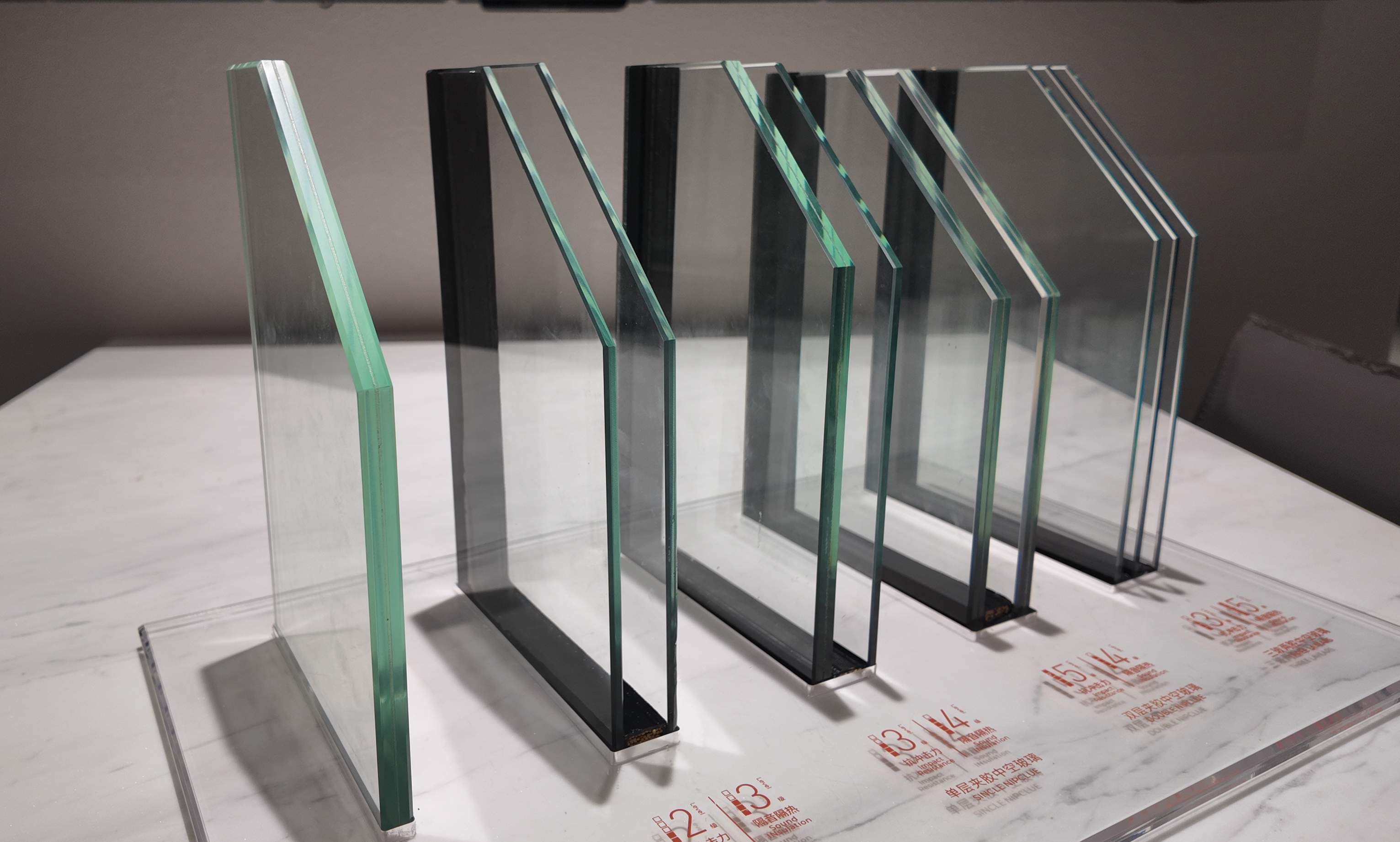

06 l Glass structures
Double-Glazed Units (DGUs) – Configured with argon gas filling, these units deliver outstanding thermal insulation and energy efficiency, minimizing heat transfer and reducing energy consumption.
Triple-Glazed Units – Provide enhanced insulation performance for extreme climate conditions, significantly reducing heat loss and improving indoor comfort throughout the year.
Low-E Glass – Coated with a special low-emissivity layer that reflects infrared heat while allowing visible light to pass through. It offers excellent UV protection, boosts energy efficiency, and helps maintain a cooler interior in hot climates.
Optional Upgrades – Available with high-performance Low-E coatings, ideal for villas, premium residences, or properties in regions with intense sunlight exposure.

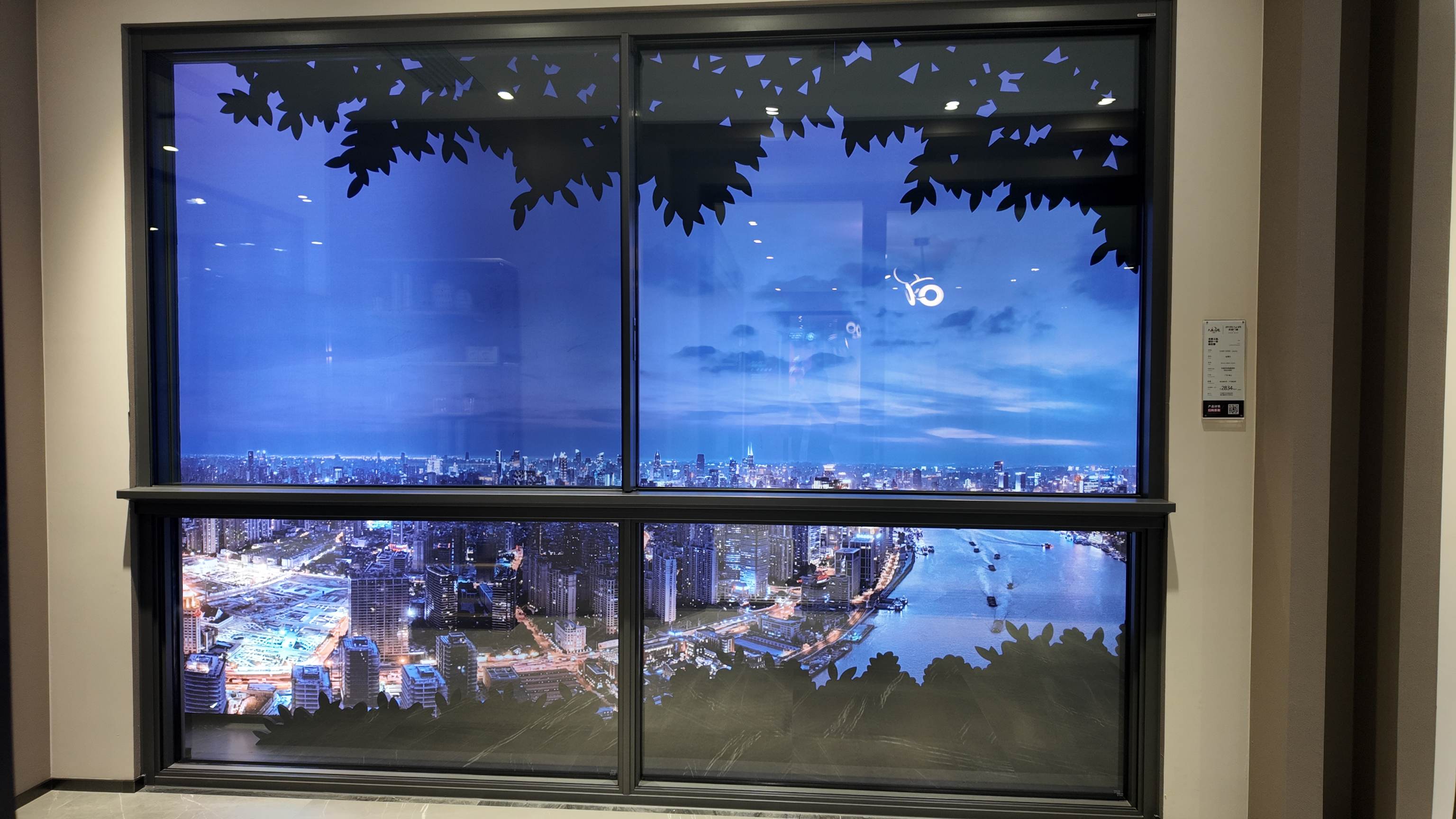

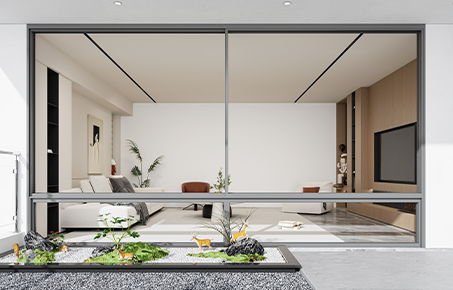

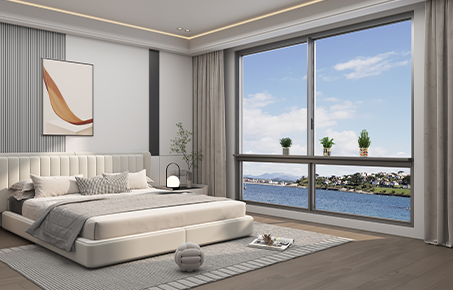

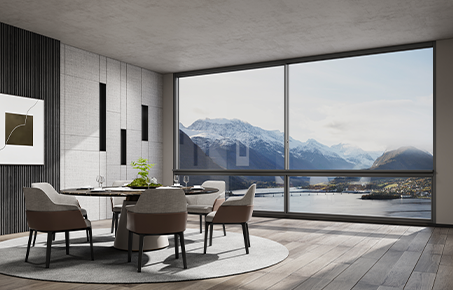

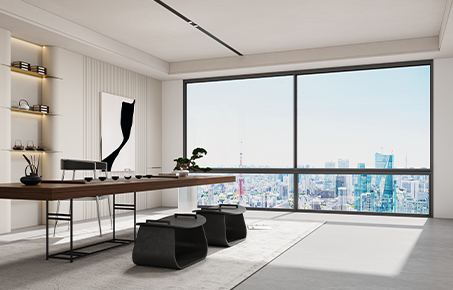

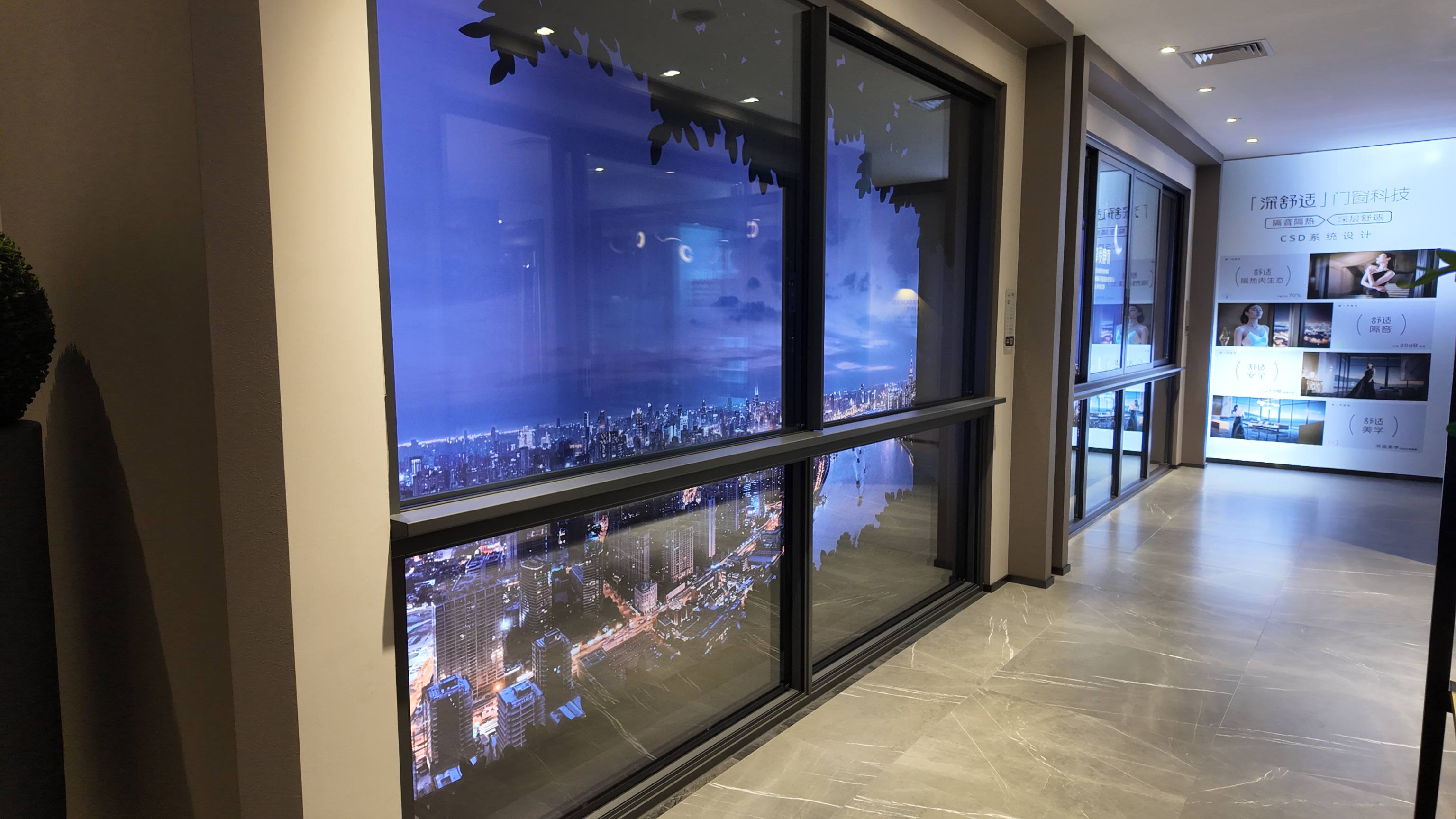

Application Scenarios

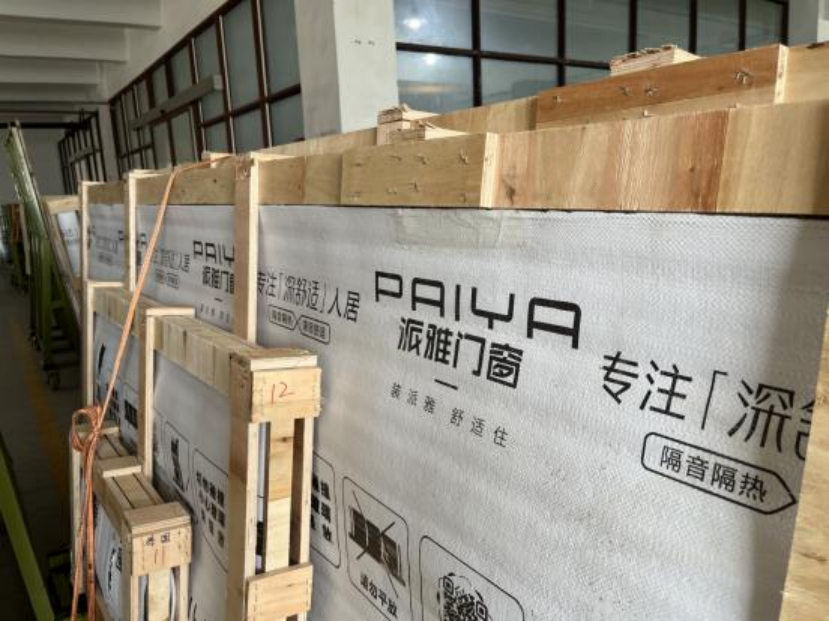

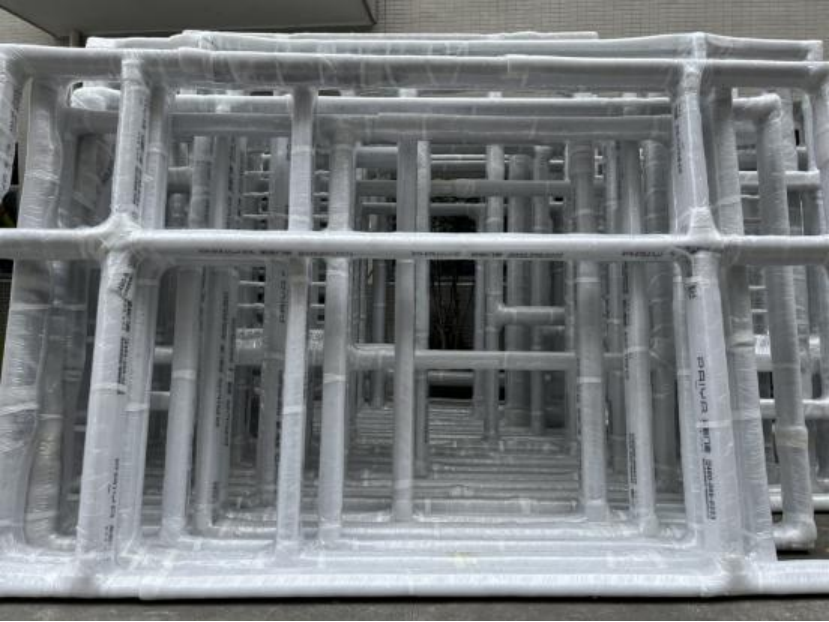

Package & Shipping
Yes, our products are designed and manufactured to meet international performance standards, including U-value, wind resistance, air tightness, and water tightness, in line with CE (EN standards) and ISO 9001 requirements.If your market requires specific certificates (such as UKCA, AS2047, or NAFS), we can also prepare the documents or testing accordingly.
We provide full project support from design to after-sales service, including:
10 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.If any problem occurs, please contact us with photos or a short video. Our after-sales team will offer technical guidance, spare parts replacement, or local repair support depending on the situation.
25-35 days after deposit and drawing confirmed
The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you.
(1) Shop drawing / window schedule to show the window dimensions, quantity and type;
(2) Frame Color ；Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others,with Argon or without).
Yes,Our factory covers an area of 300000㎡and has a history of more than thirty years.
