Insulation design system and glazings with Low-e glass, meeting different energy rating standards.
|
Glass Configuration |
Tempered glass: 5mm + 27A + 5mm Optional glass: 6mm to 15mm thickness Triple glazing Lamination glass Low-e glass |
|
Hardware |
Standard: SIEGENIA window control system, SIEGENIA “Little Waist” handle exclusively customized for Paiya |
|
Drainage System |
Stepped Hidden Drainage System |
|
Aluminum Profile Thickness |
1.8mm |
|
Depth of frame |
120mm |
Product Features
1. Thermal break system
Featuring thermal-break system technology for energy saving, sound insulation, noise reduction, dust and water resistance.
2. Heat proof
Insulation design system and glazings with Low-e glass, meeting different energy rating standards.
3. Sound proof
Insulation glass system reducing noise from 36db to 43db
4. stable structure
Premium primary aluminum 6063-T5, professional architectural system design, strong and safe structure
5. Aesthetics
Hidden drainage system without external wind caps, delivering a clean exterior look while ensuring vertical drainage that prevents rainwater backflow under high wind conditions.
6. Intelligent
With smart window control system, intelligentize your home.
Product Brief

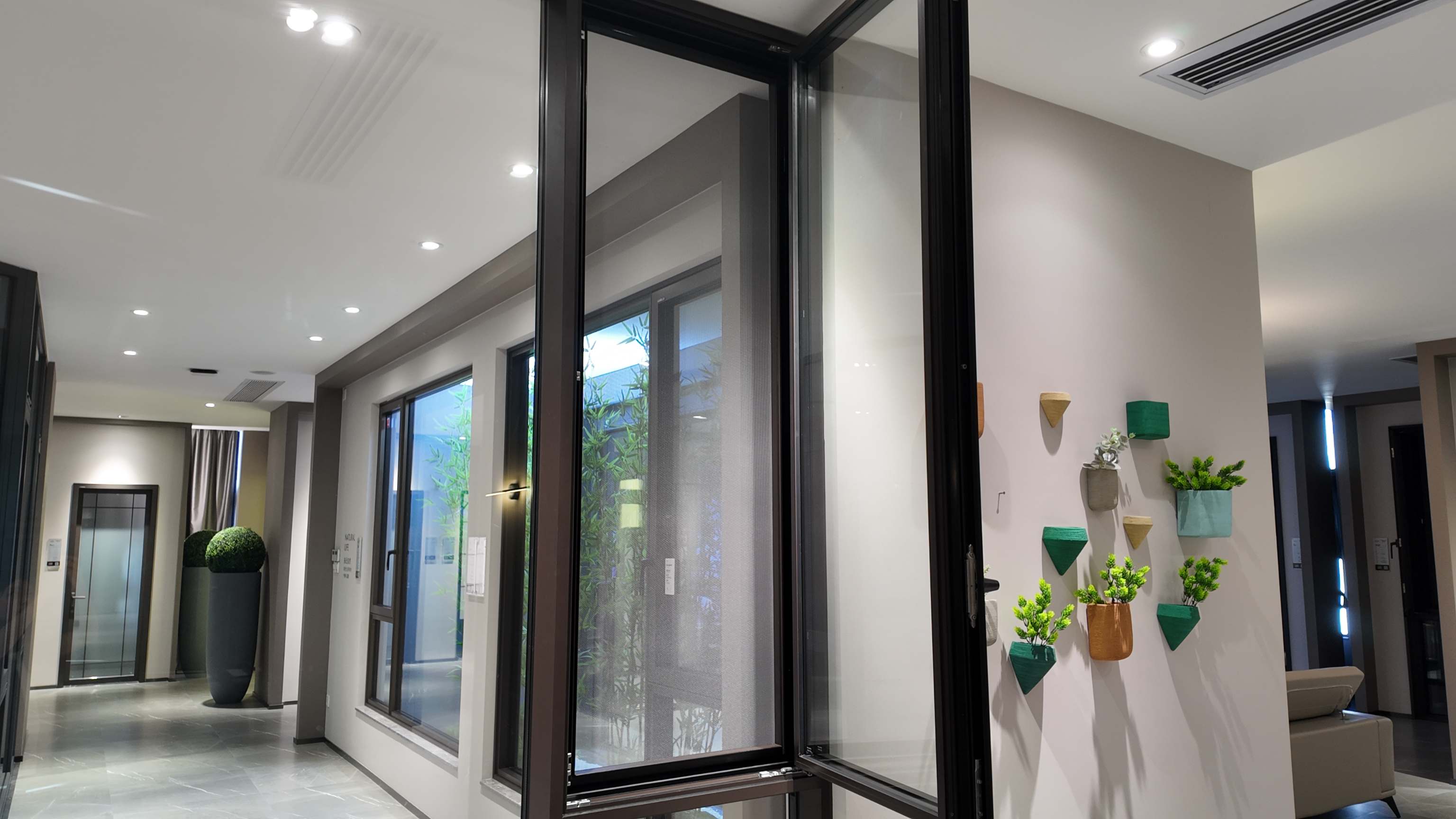

1. Dual-Function Opening
Our tilt-and-turn window offers two convenient opening modes:
2.Appearance Design:
Innovative “Three-Flat” aesthetic with refined interior detailing combines beauty and strength, enabling wide-view applications for villa-scale floor-to-ceiling windows.
3.Sealing Design:
38mm wide insulation strips improve thermal and wind resistance; triple-seal design with flexible EPDM strips enhances airtightness and watertightness.
4.Drainage System:
Designed with a hidden drainage structure, keeping the façade clean and elegant without exposed plastic covers. The recessed structure promotes quick water drainage and prevents backflow of rainwater.
Product details
01 | Innovative Design
Stands out in modern architecture with elegance and simplicity.
02 | Precision Craftsmanship

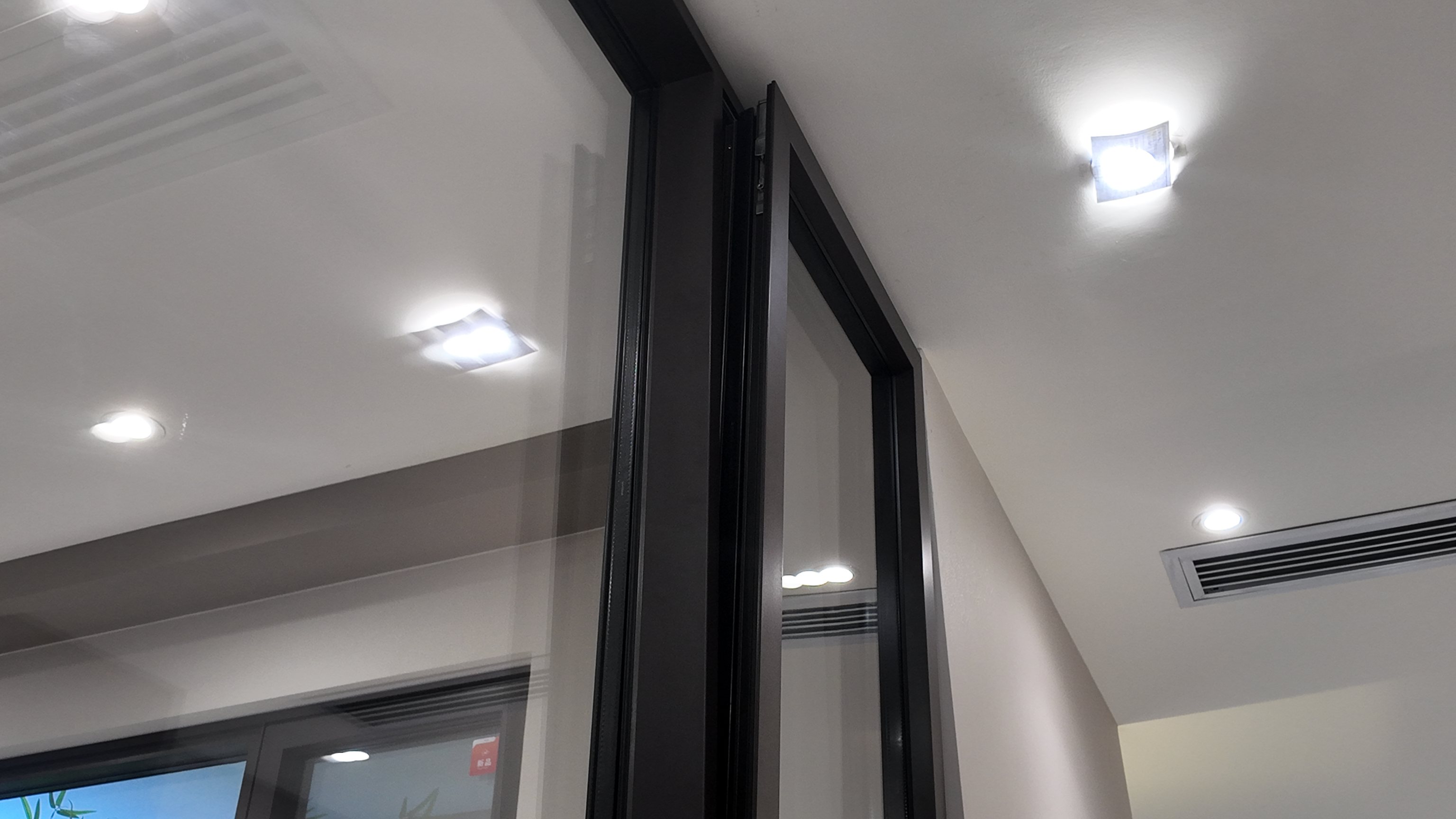

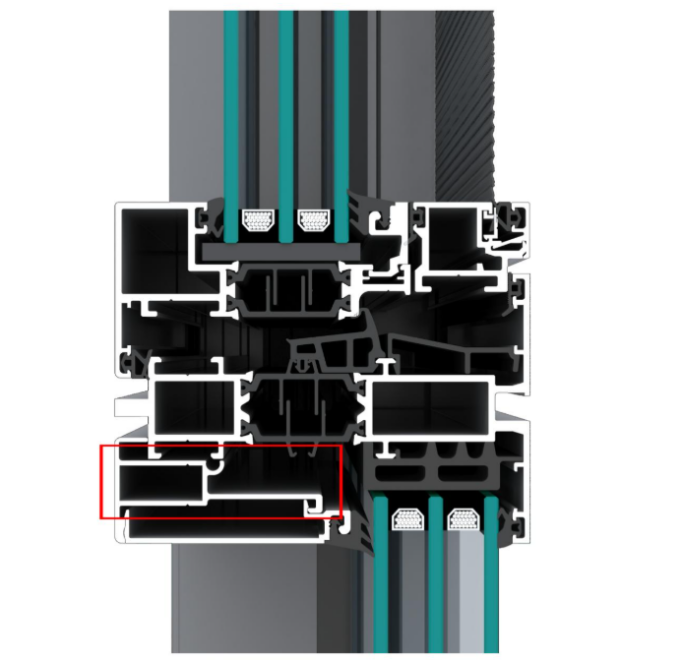

Reinforced full sub-frame,
effectively enhancing the overall stability of the window.

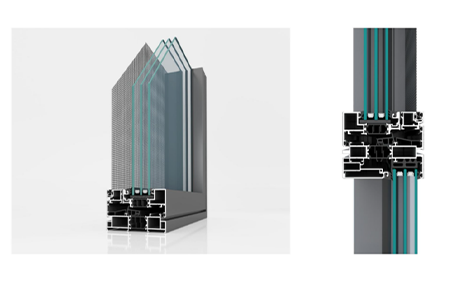

03 | Structural features

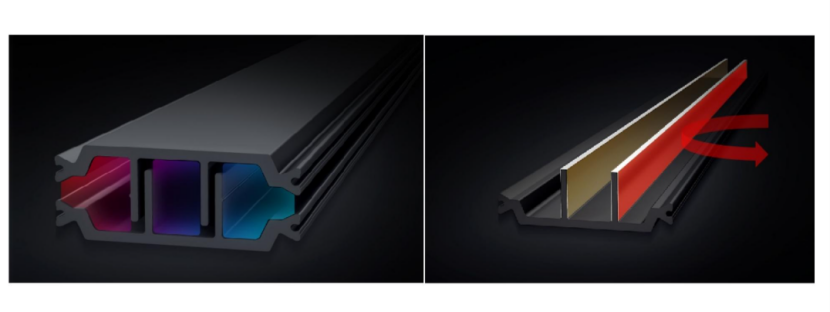

The use of Low-E coated glass combined with ribbed thermal break strips — an industry innovation — blocks 97% of far-infrared heat radiation. Together with the multi-chamber thermal insulation structure, it improves thermal performance by 8.7%.

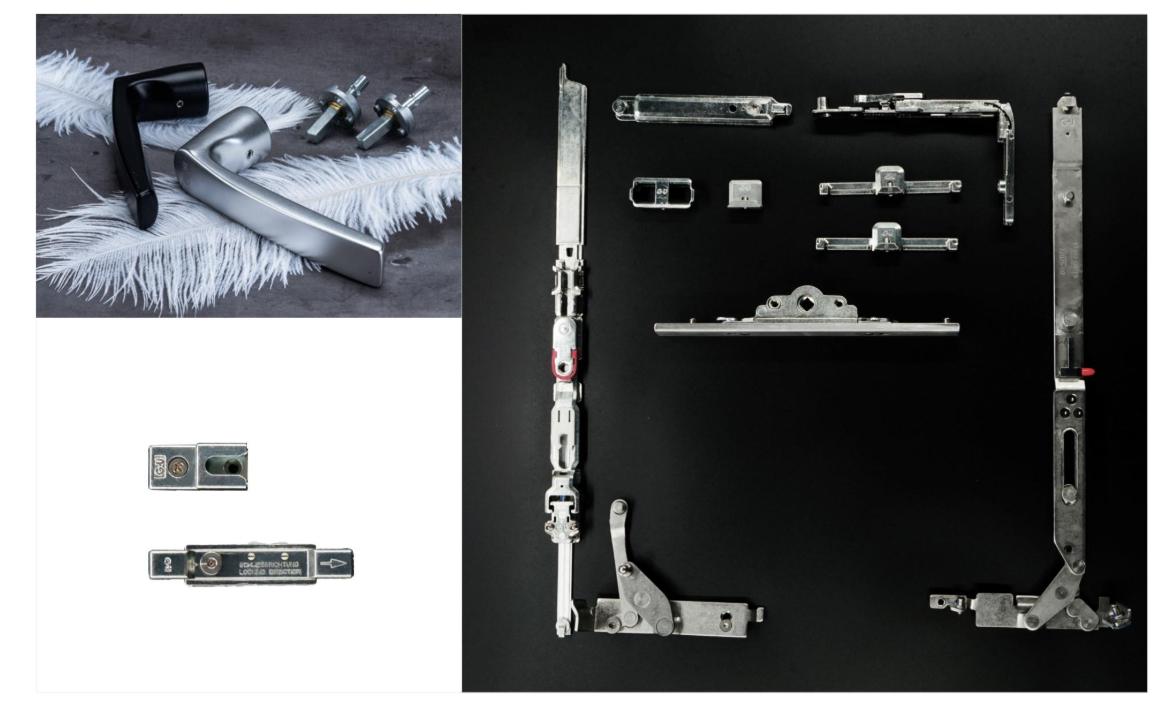

04 | Premium Hardware
Standard configuration includes GU (Gretsch-Unitas) hardware system throughout the entire series. Optional SIEGENIA German handles are available.
All GU hardware components have outstanding anti-corrosion performance — passing 576-hour salt spray testing, with world-class surface treatment technology that ensures longevity and smooth operation.
05| Color treatment
The surface adopts AkzoNobel powder coating, ensuring true, saturated, and long-lasting color stability.
Through ceramic electrodeposition technology, the surface receives an anti-glare treatment that produces a soft, elegant gloss without light pollution, and a fine, skin-touch texture.
Powder of Tiger brand presents comfortable pastel clean feelings.
06 | Mesh
0.13 mm Ultra-Fine Mesh – Designed for high transparency and superior visibility while keeping out even the smallest insects such as mosquitoes and midges. Ideal for homes requiring excellent ventilation and unobstructed views.
0.15 mm Fine Mesh – A perfect balance between clarity and durability. Provides effective insect protection without compromising natural airflow, making it suitable for most residential applications.
0.40 mm Reinforced Mesh – Features a thicker wire diameter for greater strength and tear resistance. Recommended for high-traffic areas, sliding doors, or households with pets.
0.80 mm Heavy-Duty Mesh – Engineered for maximum durability, impact resistance, and security. Ideal for villas, ground-floor windows, or coastal and windy regions where enhanced protection is essential.
06 l Glass structures
Double-Glazed Units (DGUs) – Configured with argon gas filling, these units deliver outstanding thermal insulation and energy efficiency, minimizing heat transfer and reducing energy consumption.
Triple-Glazed Units – Provide enhanced insulation performance for extreme climate conditions, significantly reducing heat loss and improving indoor comfort throughout the year.
Low-E Glass – Coated with a special low-emissivity layer that reflects infrared heat while allowing visible light to pass through. It offers excellent UV protection, boosts energy efficiency, and helps maintain a cooler interior in hot climates.
Optional Upgrades – Available with high-performance Low-E coatings, ideal for villas, premium residences, or properties in regions with intense sunlight exposure.

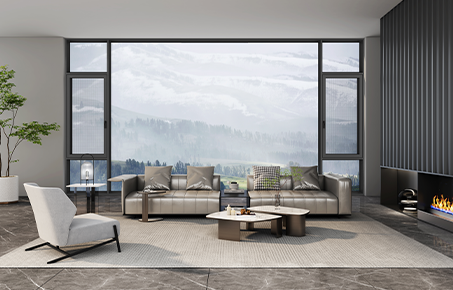

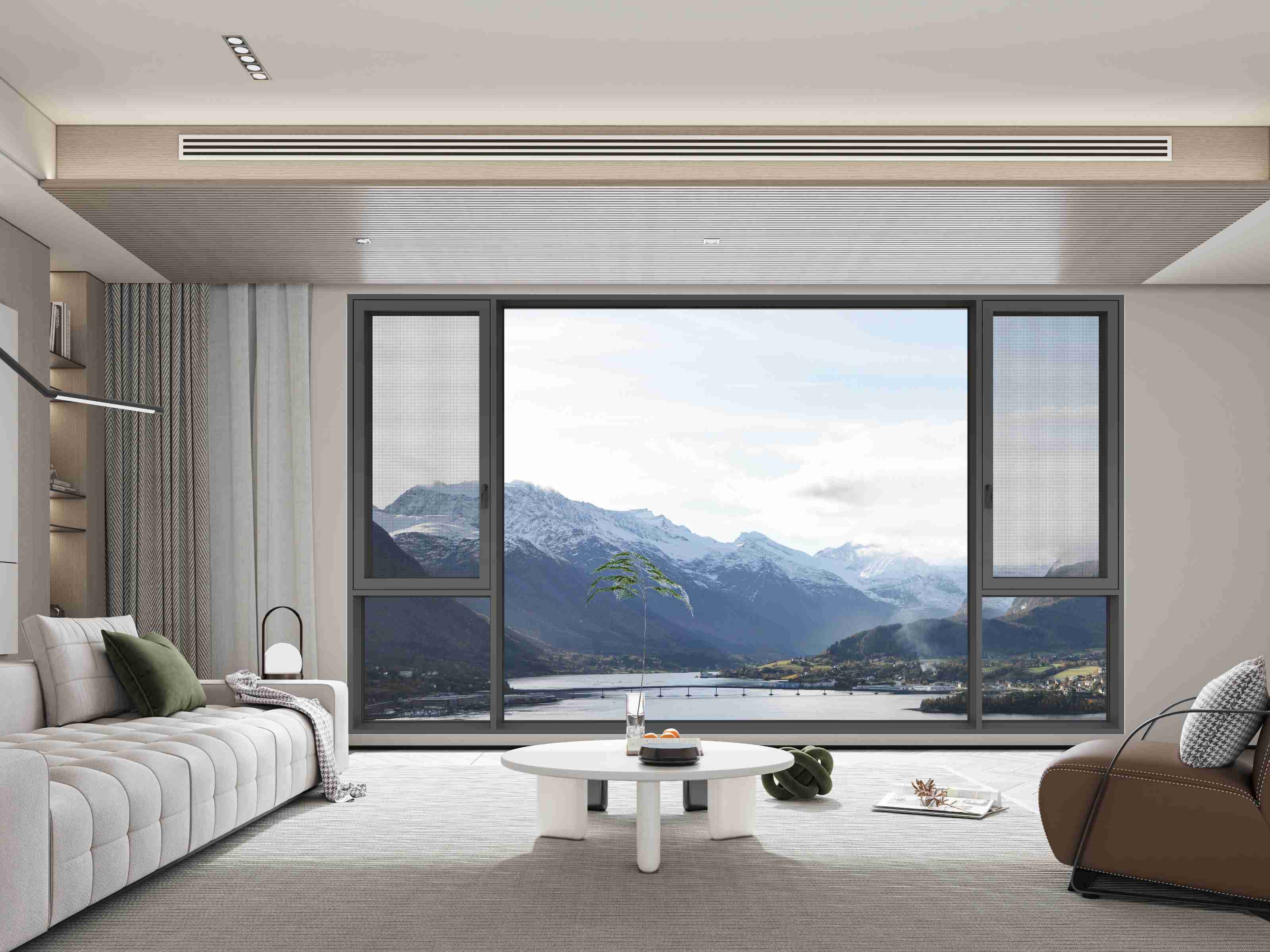

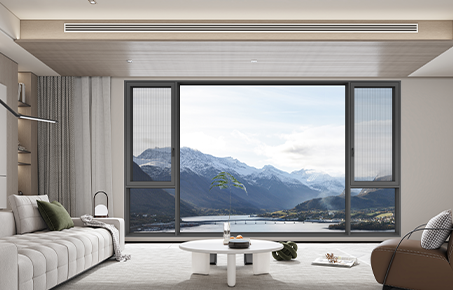

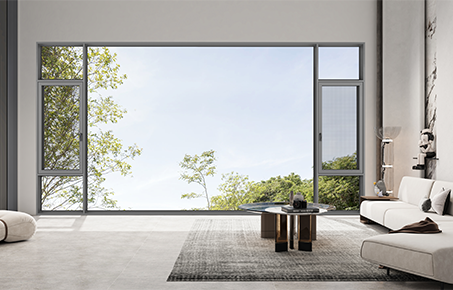

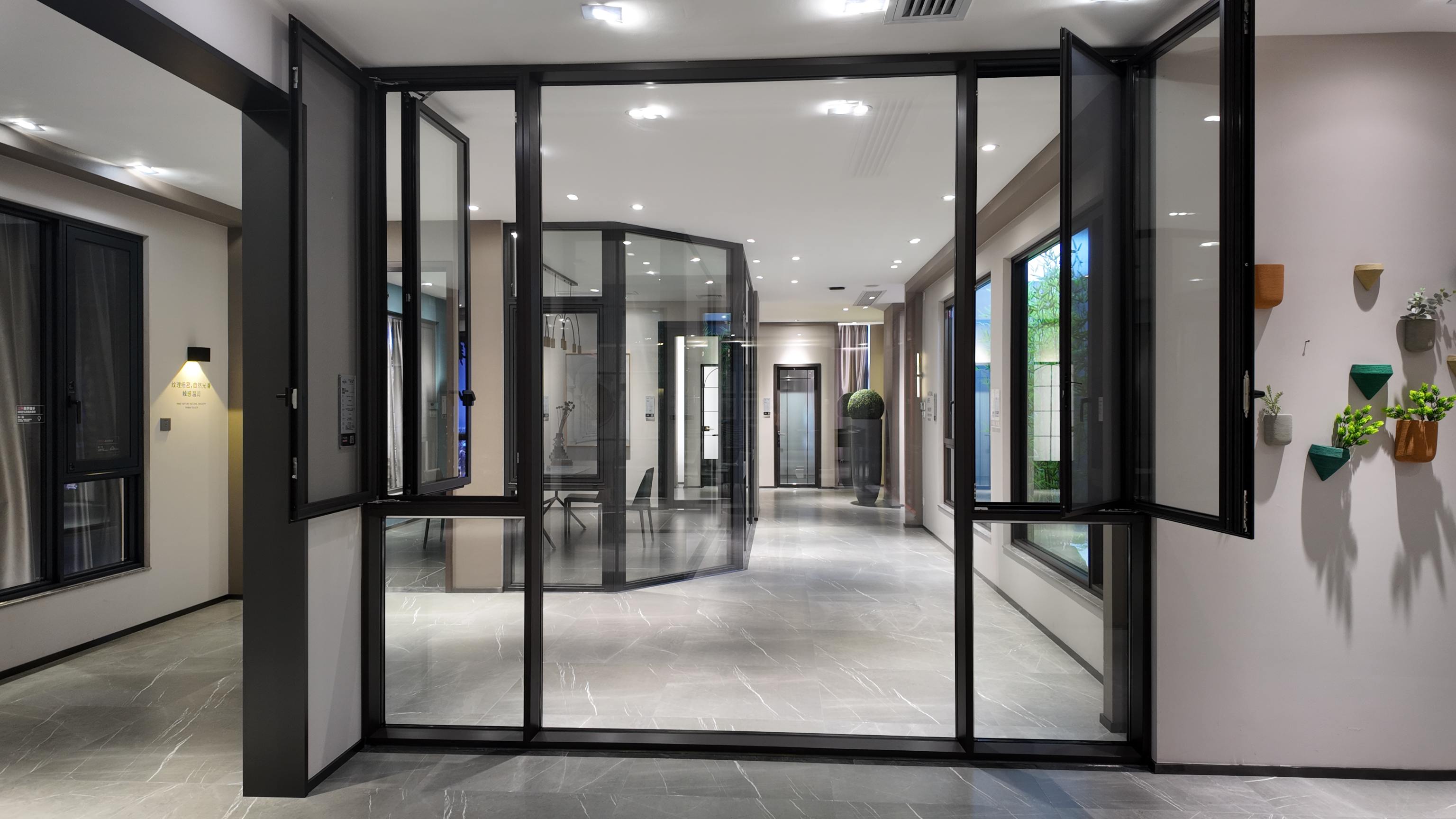

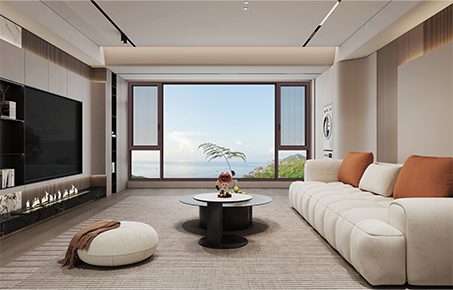

Application Scenarios
Package & Shipping
Yes, our products are designed and manufactured to meet international performance standards, including U-value, wind resistance, air tightness, and water tightness, in line with CE (EN standards) and ISO 9001 requirements.If your market requires specific certificates (such as UKCA, AS2047, or NAFS), we can also prepare the documents or testing accordingly.
We provide full project support from design to after-sales service, including:
10 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.If any problem occurs, please contact us with photos or a short video. Our after-sales team will offer technical guidance, spare parts replacement, or local repair support depending on the situation.
25-35 days after deposit and drawing confirmed
The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you.
(1) Shop drawing / window schedule to show the window dimensions, quantity and type;
(2) Frame Color ；Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others,with Argon or without).
Yes,Our factory covers an area of 300000㎡and has a history of more than thirty years.
